Sanwa PGS-XB2 SXR
Setting Items:
- SSL-CH (SSL Channel Setting)
- STRETC (Stretcher Adjustment)
- BOOST (Boost Adjustment)
- D-Band (Dead Band Adjustment)
- MV-MID (Middle Torque Adjustment)
- MV-END (Later Torque Adjustment)
- BREAK (Break Adjustment)
- MV-HOLD (Power Adjustment at whole area)
- MV-FRQ (Feeling Adjustment at whole area)
- MAX-PW (Max Duty Adjustment)
- PGS-Servo Explanation
# Setting Gear is necessary for ◎setting.
Specifications:
| Speed (7.4V) | 0.11 sec/60° |
| Speed (6.0V) | 0.14 sec/60° |
| Torque (7.4V) | 21.1 kg/cm |
| Torque (6.0V) | 17.9 kg/cm |

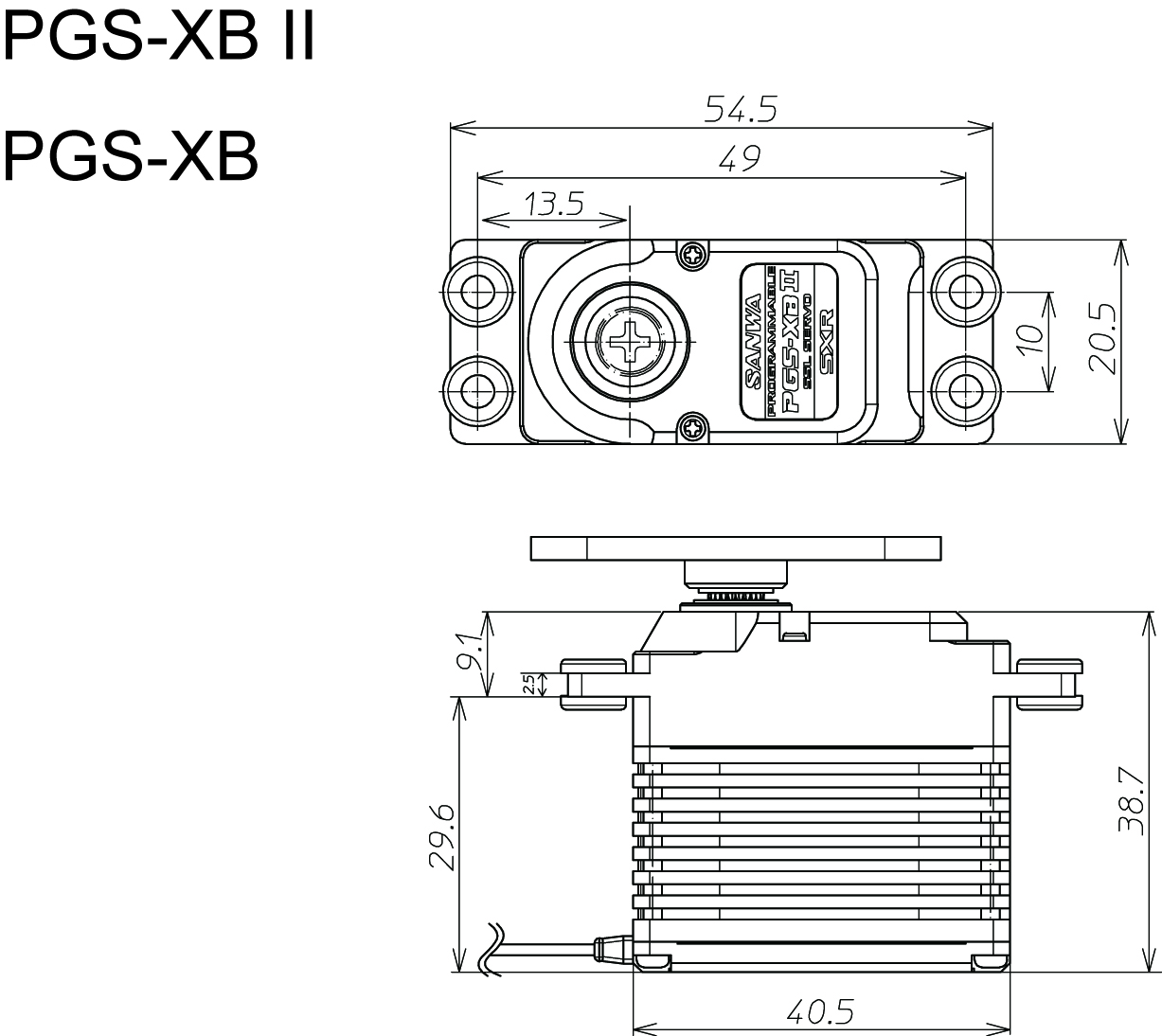

| Dimensions | 40.5×20.5×38.7mm |
| Weight | 72g |
180,00 €
Διαθέσιμο κατόπιν παραγγελίας σε 5-10 ημέρες
Features:
- Programmable Servo to be compatible with SSL & Telemetry at Launch
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Setting Gear
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
- FH5U: SXR(Sanwa Xtreme Response) Mode-Compatible
- SSL-Compatible Programmable Servo
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
- PGS Setting Gear-Compatible
- Super Response (SSR) Mode-Compatible
- High Response (SHR) Mode-Compatible
- Li-Po 2 CELL-Compatible
- High Torque Type
- Brushless Motor
- Full Aluminum Case
- Full Metal Gear (Strengthening Gears)
- AL Heat Sink
- Black Harness
